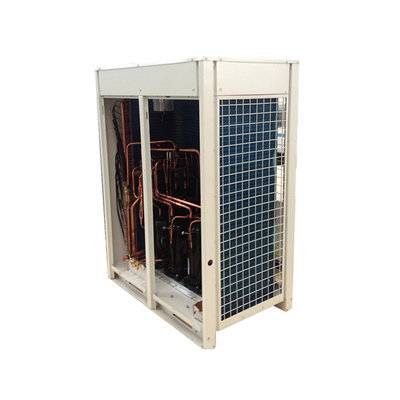

Rooftop Air Conditioner/Rooftop Packaged Commercial Air Conditioner
Features:
Cooling Capacity: From 3 ton to 35 ton..
Weather proof-Weather-proof, polyester epoxy power electrostatic paint oven-baked finish for sheet metal and multi epoxy polyester coating for base frame for maximum protection
Intelligent control-Parameters of unit are monitored and adjusted by microcomputer system.
High efficiency- High efficiency thanks to the Anti-vibration mounting scroll compressors.
Immediate operability - Quick start-up is assured once installation is complete.
Safety and reliability -Complete unit control function, multi protection, safe and reliable operation.
Quiet Operation:
This type are basically constructed and engineered with noise reduction as a first consideration (low noise mouted fans are used. Fiber glass insulation for evaporator section and compressor are mounted on vibration isolators.)
1. Cooling condition: Indoor dry bulb/wet bulb: 29/19℃,Outdoor dry bulb/wet bulb: 46/24℃ |
|
|||||
2. Heating condition:Indoor dry bulb/wet bulb: 20/—℃;outdoor dry bulb/wet bulb: 7/6℃; |
|
|||||
3. The air volume and static pressure`s specification in the table is standard, and can be designable. |
||||||
4. Noise data is measured in the front of the units when cooling under the standard air volume. |
||||||
5. Fin type and material can be designable. |
|
|
|
|
|
|
GT-WKR Series-Roof Top AC Specifiaction 1 |
|||||||||||||||||||||||
Model GT-WKR- | 10 | 15 | 18 | 20 | 25 | 30 | 35 | ||||||||||||||||
Specification |
Cooling capacity 1* | kW | 10.5 | 15.0 | 18.5 | 21.0 | 26.3 | 29.8 | 35.0 | ||||||||||||||
Heating capacity 2* | kW | 11.5 | 15.9 | 19.5 | 22.1 | 27.6 | 32.6 | 37.1 | |||||||||||||||
Supply air 3* | m3/h | 1800 | 2400 | 2900 | 3500 | 4500 | 5000 | 5800 | |||||||||||||||
Static pressure 3* | Pa | 100 | 150 | 150 | 180 | 200 | 250 | 250 | |||||||||||||||
Noise 4* | dB(A) | 60 | 60 | 62 | 62 | 65 | 65 | 68 | |||||||||||||||
Power | 3N-380V-60Hz | ||||||||||||||||||||||
Total capacity | 3.9 | 5.74 | 7.0 | 8.27 | 9.96 | 11.0 | 14.15 | ||||||||||||||||
Color | White | ||||||||||||||||||||||
ooling system |
Compressor | Type | Efficient scroll closed | ||||||||||||||||||||
Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 2 | ||||||||||||||||
Supply air fan | Type | Low noise centrifugal type | |||||||||||||||||||||
Capacity | kW | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 | |||||||||||||||
Evaporator | Type | Inner grooved copper tube and aluminum fin | |||||||||||||||||||||
Fin type 5* | Slotted fin hydrophilic aluminum fin | ||||||||||||||||||||||
Condenser | Type | Inner grooved copper tube and aluminum fin | |||||||||||||||||||||
Fin type 5* | Rippled hydrophilic aluminum fin | ||||||||||||||||||||||
Condenser fan | Type | Low noise axial type | |||||||||||||||||||||
Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 2 | ||||||||||||||||
Refrigerant | Refrigerant | R22/R407C | |||||||||||||||||||||
Refrigerant control | External balance type thermal expansion valve | ||||||||||||||||||||||
Air filter | Initially effect plate filter | ||||||||||||||||||||||
Dimensions | L | mm | 1400 | 1400 | 1600 | 1600 | 1850 | 1850 | 2200 | ||||||||||||||
W | mm | 1050 | 1050 | 1200 | 1200 | 1400 | 1400 | 1800 | |||||||||||||||
H | mm | 1050 | 1050 | 1050 | 1050 | 1200 | 1200 | 1520 | |||||||||||||||
Weight | kg | 200 | 230 | 260 | 300 | 550 | 600 | 850 | |||||||||||||||
|
|||||||||||||||||||||||
Model GT-WKR- | 40 | 50 | 60 | 70 | 90 | 110 | 120 | ||||||||||||||||
Specification |
Cooling capacity 1* | kW | 42.0 | 52.8 | 61.2 | 70.2 | 87.5 | 105.1 | 122.5 | ||||||||||||||
Heating capacity 2* | kW | 44.1 | 55.4 | 62.5 | 73.8 | 92.8 | 112.0 | 130.0 | |||||||||||||||
Supply air 3* | m3/h | 7000 | 8600 | 10000 | 12000 | 14500 | 17000 | 20000 | |||||||||||||||
Static pressure 3* | Pa | 300 | 300 | 300 | 350 | 350 | 400 | 400 | |||||||||||||||
Noise 4* | dB(A) | 68 | 69 | 69 | 70 | 71 | 72 | 72 | |||||||||||||||
Power | 3N-380V-60Hz | ||||||||||||||||||||||
Total capacity | 17.24 | 20.72 | 23.0 | 29.76 | 39.1 | 44.66 | 51.58 | ||||||||||||||||
Color | White | ||||||||||||||||||||||
ooling system |
Compressor | Type | Efficient scroll closed | ||||||||||||||||||||
Quantity | 2 | 2 | 2 | 2 | 2 | 4 | 4 | ||||||||||||||||
Supply air fan | Type | Low noise centrifugal type | |||||||||||||||||||||
Capacity | kW | 2.2 | 3 | 4 | 4 | 5.5 | 7.5 | 7.5 | |||||||||||||||
Evaporator | Type | Inner grooved copper tube and aluminum fin | |||||||||||||||||||||
Fin type 5* | Slotted fin hydrophilic aluminum fin | ||||||||||||||||||||||
Condenser | Type | Inner grooved copper tube and aluminum fin | |||||||||||||||||||||
Fin type 5* | Rippled hydrophilic aluminum fin | ||||||||||||||||||||||
Condenser fan | Type | Low noise axial type | |||||||||||||||||||||
Quantity | 2 | 2 | 2 | 4 | 4 | 4 | 4 | ||||||||||||||||
Refrigerant | Refrigerant | R22/R407C | |||||||||||||||||||||
Refrigerant control | External balance type thermal expansion valve | ||||||||||||||||||||||
Air filter | Initially effect plate filter | ||||||||||||||||||||||
Dimensions | L | mm | 2200 | 2600 | 2600 | 3200 | 3200 | 6000 | 6000 | ||||||||||||||
W | mm | 1800 | 2200 | 2200 | 2200 | 2200 | 2300 | 2300 | |||||||||||||||
H | mm | 1520 | 1700 | 1700 | 1900 | 1900 | 2300 | 2300 | |||||||||||||||
Weight | kg | 850 | 1100 | 1250 | 1400 | 1650 | 1850 | 2200 |
